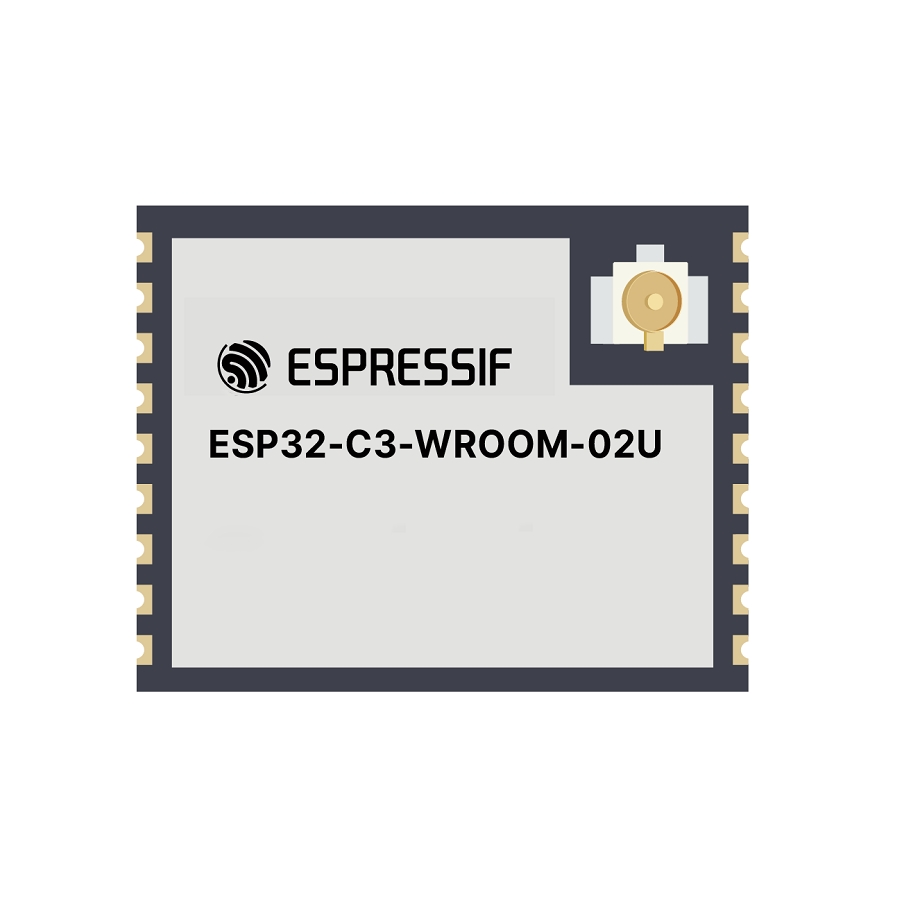

ESP32-C3-WROOM-02U-N4
Manufacturer:
Espressif Systems
Mfr.Part #:
ESP32-C3-WROOM-02U-N4
Datasheet:
Description:
RF - Transceiver Modules and Modems Module SMD/SMT WiFi, Bluetooth 802.11b/g/n, Bluetooth v5.0 2.4 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Frequency | 2.4 GHz |
| Interface | GPIO, I2C, I2S, SPI, UART |
| Data Rate | 150 Mbps |
| Current - Receiving | 82 mA to 84 mA |
| Current - Transmitting | 280 mA to 345 mA |
| Output Power | 20.5 dBm |
| Supply Voltage | 3 V to 3.6 V |
| Sensitivity (dBm) | -98 dBm |
| Standard | WiFi, Bluetooth |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
Stock: 823
Distributors
pcbx
pcbxUnit Price$3.03446
Ext.Price$3.03446
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.03446 | $3.03446 |
| 10 | $2.70691 | $27.06910 |
| 25 | $2.54027 | $63.50675 |
| 50 | $2.38389 | $119.19450 |
| 100 | $2.23711 | $223.71100 |
| 300 | $2.18216 | $654.64800 |
| 500 | $2.12856 | $1064.28000 |
| 1000 | $2.07629 | $2076.29000 |
